Description
Descriptions:

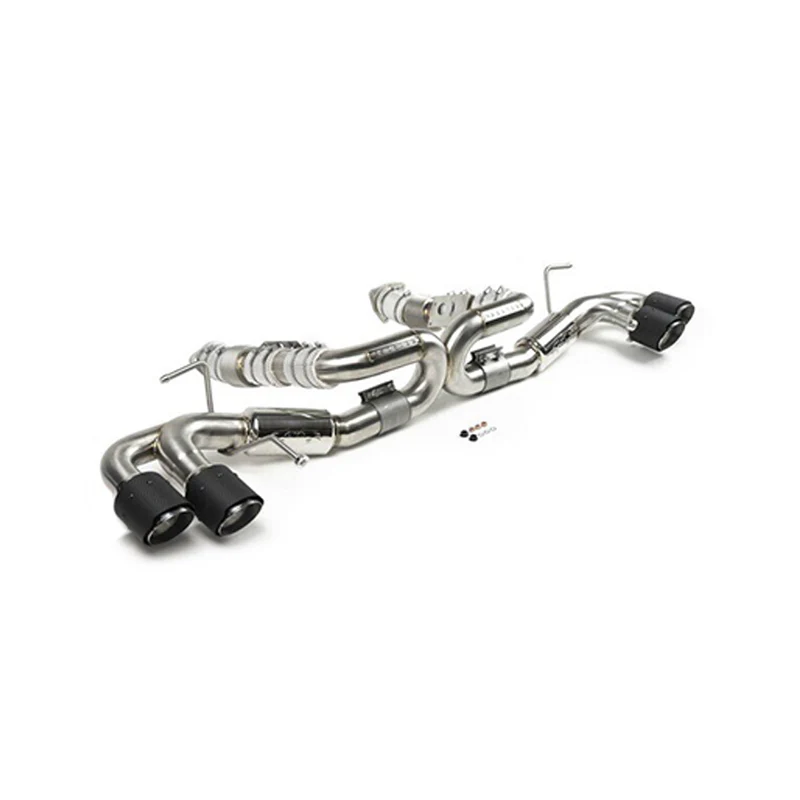

Fabspeed’s Supersport X-Pipe Exhaust is the ultimate cat-back setup for your C8 Corvette. This full 3 in system will wake up your LT2 engine like no other exhaust out there.
Sound:
This valveless exhaust system has the bark to match the C8’s bite. With an authoritative rumble at idle and cruising speeds, no one will mistake your exhaust note for the pedestrian stock system. Open up the throttle and now you can feel it in your chest. The X-pipe design gives the LT2 motor a distinct exotic growl that will put a smile from ear-to-ear on your face. Watch the video below and see for yourself!
Additional Information:
| HP (whp) | TQ (ft/lbs) | WT (lbs) |
|---|---|---|
| TBD | TBD | -38 / -17 |
Features:
- Fits all Chevrolet Corvette C8 2020+ Vehicles
- 3D laser scanned, digitized and CAD designed for maximum flow and performance
- 3.0” 76mm T304L/ 321 stainless steel tubing and flexible bellows made 100% in house at Fabspeed Motorsport USA
- CNC mandrel bent tubing and hand TIG welded and argon back-purged welds

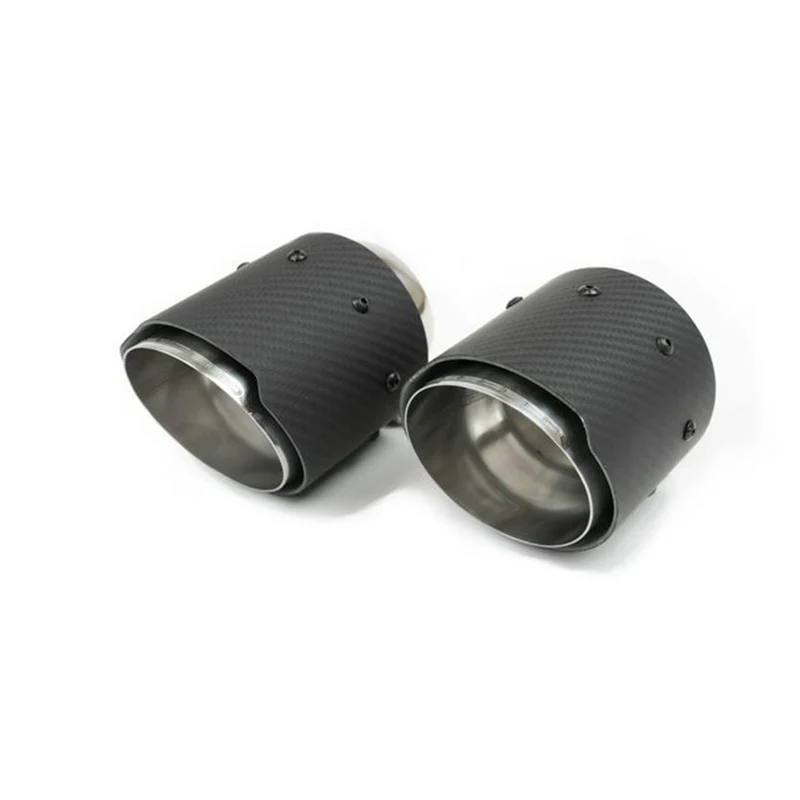

- Choice of Quad Carbon Fiber, Polished Stainless Steel, Satin Black Powdercoated Stainless Steel tips, or polished Dual Oval tips

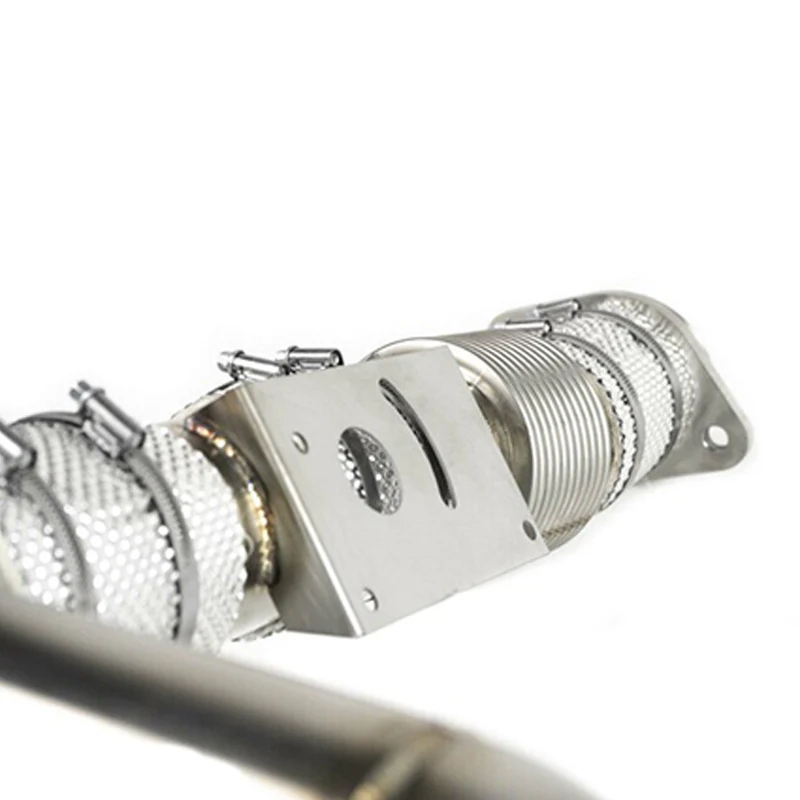

- Includes heat shielding made from amorphous silica fiber wrapped with 321 Stainless Steel
- Cat back 100% Emissions legal worldwide

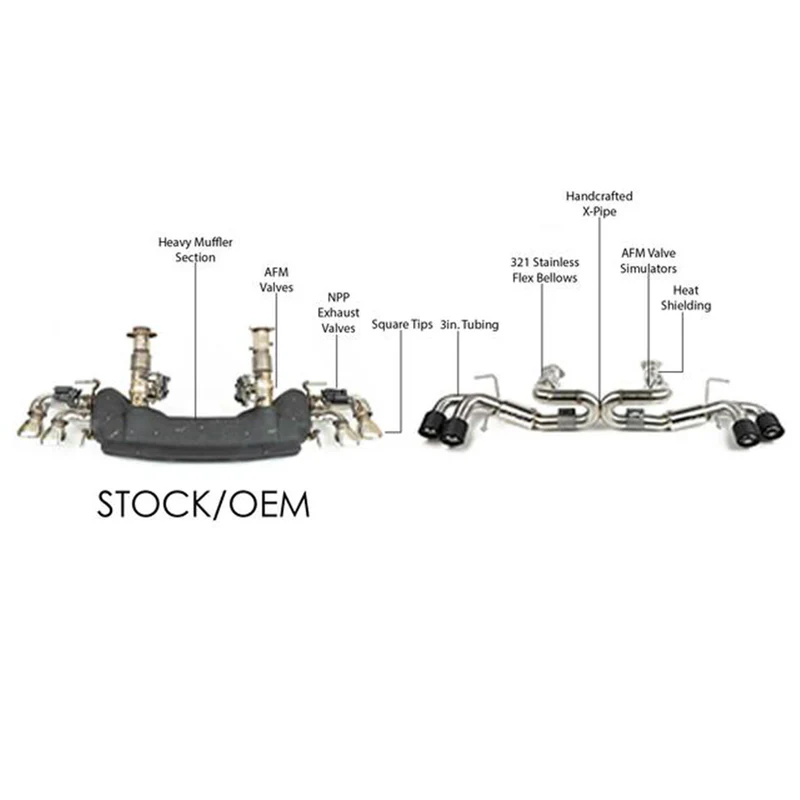

- The heavy NPP OEM system weighs 76 lbs / 34.5 KGs, Fabspeed system removes/saves 38 lbs / 17 KGs
- Includes AFM valve simulator mounts – Fabspeed recommends placing the car in 8-cylinder mode to eliminate any possibility of a Check Engine Light
- Your choice of Deluxe QUAD matte carbon fiber tips, polished stainless steel, satin black, or dual oval polished stainless steel
- Larger diameter tubing allows the C8 engine to really breathe and have Gutsy Throaty sports car sound across the RPM band. Larger tubing allows for future performance modifications
- Fabspeed Motorsport USA over 25+ years worldwide experience with Porsche, Ferrari, Lamborghini, McLaren, Aston Martin and other exotic cars. Corvette C8 owners very best choice for maximum power, reliability and sports car sound
- Simple DIY bolt-on installation, no cutting or welding required
- All Fabspeed performance products are backed by the Fabspeed Lifetime Warranty
The new 2020 C8 Corvette is a modern marvel of engineering. It’s mid engined design is a first for the Corvette, but here at Fabspeed Motorsport USA we’re no stranger to mid engined cars. One potential engineering hurdle introduced by a mid engined layout is cooling and some have speculated that an aftermarket exhaust system for the C8 would have to include heat shielding to protect engine bay components. Here at Fabspeed, we strive to provide our customers with the best possible product. That means it needs to meet or exceed OE reliability and performance. So the Fabspeed Engineering Team conducted extensive heat testing of the critical areas in the C8 engine bay.
The goal was to accurately measure the maximum surface temperatures reached in multiple areas. This was achieved by applying temperature test labels together in groups of four in specific numbered locations in the space occupied by the OEM muffler. The test vehicle was a 2020 C8 Corvette Z51 package with NPP exhaust. A total of 16 locations were chosen for the test (See Figures 3 – 6 below). Note: The temperature labels are adhesive backed and operate by turning black once their specified temperature threshold has been exceeded, they are non reversible. These test labels are the most accurate way of determining surface temperature.
Once the temperature labels were applied and the exhaust components installed, the rear of the car was fully assembled (bumper cover, wheel well liners, splash shield) and ran through this test process:
- 1. A 15-20 minute spirited road test.
- 2. 5 Dyno pulls in 4th gear
- 3. 5 minutes at 4k RPM on the dyno (until fluid temperatures reached a critical point)
To establish a baseline, the OEM muffler with OEM heat shielding was installed and ran through the 3 test steps above. The rear of the car was dis-assembled and the maximum temperature results from each area were recorded in the “OEM Muffler” column in Table 1 below. The Fabspeed Supersport X-Pipe with Fabspeed heat shielding (See Figures 1 + 2 above) was then installed, the rear of the car was fully assembled and ran through the same 3 steps listed above. The rear of the car was again dis-assembled and the maximum temperature from each area was recorded in the “Fabspeed X-Pipe” column in Table 1.
The results of our heat testing shows that the Fabspeed Supersport X-Pipe heat signature was exactly the same as the OEM muffler in all 16 test locations. That means that our Supersport X-Pipe and Valvetronic Maxflo Exhaust (which shares a similar design and the same heat shielding) meet OE radiant heat levels and will provide the same reliability and heat control as the stock exhaust system. There will be absolutely no heat related problems when installing the Fabspeed Supersport X-Pipe or Valvetronic Maxflo Exhaust System on the C8 Corvette.
Vehicle Fitment Chart:
| MAKE | MODEL | CHASSIS | YEAR |
| Chevrolet | Corvette | C8 | 2020-2021 |
If items are on back order once the order has processed, buyers will receive an email regarding estimated time of arrival, 6-8 weeks is industry standard. Delivery time is subject to change. Valve Control Exhaust will not be held liable for any delays. All back order cancellations are subject to a 50% non-refundable deposit. Please be aware of this before ordering. If you have any questions, please contact us at info@valvecontrolexhaust.com
