Fix Exhaust Drone: DIY J Pipes, Resonators, and Valve Systems

on
Categories: Uncategorized

The fastest route to a quiet cabin is to diagnose the exact rpm and frequency causing the drone, then fit a tuned resonator or Helmholtz side-branch at that point in the system, or swap in a resonated centerpipe if the pipe itself is the problem. For enthusiasts who want to dial the tone in and out instead of cutting metal, a valve-controlled exhaust gives that flexibility without a permanent change.

TL;DR:

  • Map the exact rpm where the hum starts, peaks, and fades; highway drone often falls between 1,800 and 2,800 rpm, depending on gearing and pipe length.
  • A single tuned resonator or Helmholtz branch targets narrowband drone; broadband rumble calls for checking leaks, pipe diameter, bends, and multiple resonances.
  • For a DIY side branch, clamp on a trial piece measuring 24 to 30 inches; shortening it raises the canceled frequency, while lengthening it lowers it.
  • If a muffler delete introduced the drone, restoring a resonated centerpipe often addresses the cause; replace a damaged or missing resonator, not an intact one.
  • Choose an exhaust valve system for quiet commuting and louder sound on demand; it avoids permanent changes but usually requires professional installation.
Valvecontrolexhaust
valvecontrolexhaust.com
Tune Exhaust Sound to Your Drive
Valve Control Exhaust offers adjustable valves that let you control exhaust sound in real time to suit your preferences and driving conditions.

Explore valve-controlled exhausts

Table of Contents

Quick Diagnosis: How to Find the Offending Drone Frequency and Source

Drone almost always has a pattern. Before buying parts, spend ten minutes isolating when it happens and where it lives in the cabin, which is essential to properly diagnose and stop car odour for good alongside cabin noise issues.

Start with where you hear it:

  • Cabin or headrest: usually a resonance inside the passenger compartment reacting to a specific exhaust pulse.
  • Trunk or rear deck: often a panel or trim piece buzzing in sympathy with a pipe resonance.
  • Steering wheel or floor: can point to a mechanical vibration from a loose hanger or a mount transmitting pulses through the chassis.

Once you know where, map the rpm:

  1. Drive at a steady speed in a gear that lets you hold specific rpm (2nd or 3rd gear works well on a quiet road).
  2. Note the rpm where the drone starts, peaks, and disappears. Most highway drone cases fall in a narrow band, commonly cited by owners and tuners as roughly 1,800 to 2,800 rpm depending on gearing and pipe length, as discussed in resonated vs non-resonated setups for RPM bands.
  3. Record audio with your phone’s voice memo app or a free frequency-analyzer app while holding each rpm, then compare the waveform’s dominant pitch across the range.
  4. Repeat with the windows up and down, and with a passenger in the cabin, to rule out a trim rattle rather than true exhaust drone.

While you’re under the car, look for physical clues:

  • Long, straight sections of pipe with no resonator or baffling in between.
  • A muffler delete, resonator delete, or a non-resonated test pipe in place of the factory unit.
  • Loose or collapsed rubber hangers letting the pipe swing and contact the chassis.
  • Flange gaps or exhaust leaks that add a raspy, broadband hiss on top of the tonal drone.

The distinction between narrowband and broadband matters for the fix. A narrowband drone sounds like one dominant pitch that swells and fades with rpm, the classic sign of a standing wave or a single resonant cavity. A broadband drone sounds more like a rumble or buzz across a wider rpm range, which usually points to pipe diameter, multiple resonances, or a genuine leak rather than one clean frequency.

Targeted Mechanical Fixes That Actually Stop Drone

Once you know the rpm and whether the drone is narrowband or broadband, the fix follows logically. These are ranked from least to most invasive.

Resonators and Helmholtz side-branch chambers are the standard tool for narrowband drone. A resonator is a chamber the exhaust gas passes through, while a Helmholtz side-branch is a sealed cavity connected to the pipe by a short neck that does not carry flow. Both work by canceling a specific frequency, and tuned resonator and Helmholtz designs are widely used because they target one problem pitch without reworking the whole system. A single resonator is narrowband by nature, so if your drone spans more than one nearby frequency, coupling multiple Helmholtz resonators broadens the absorption band and increases transmission loss across a wider low-frequency range.

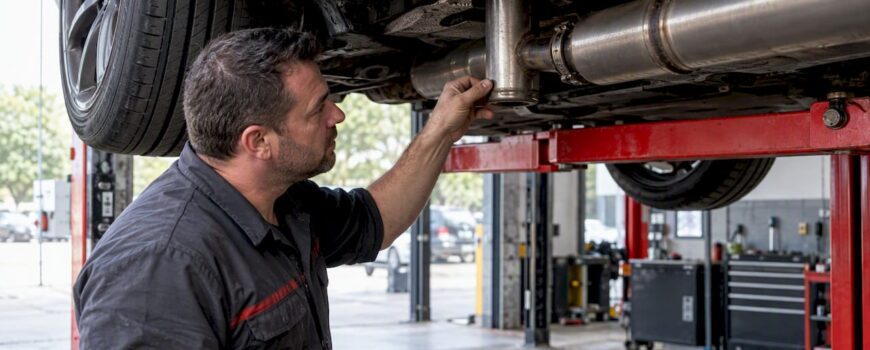

Resonator and sealed side branch cancel exhaust tones

J-pipe or side-branch tuning is the classic DIY move. Owners commonly start with a 24 to 30 inch side-branch cut from scrap pipe, cap one end, and clamp it on as a trial fit before committing to a weld. Our own DIY Helmholtz resonator build guide walks through sizing a branch to cancel drone in the 70 to 130 Hz range typical of highway cruising speeds. The principle is simple: the branch’s length and volume set the frequency it cancels, so trimming it shorter raises the target pitch and lengthening it lowers it.

Inline resonators, resonated centerpipes, and muffler or resonator swaps solve the problem at the source rather than adding a branch. If your car came with a muffler delete or a straight test pipe, that is very often the actual cause of the drone, since removing the stock resonator eliminates the one component tuned to cancel highway-speed pulses. Reinstalling a resonated centerpipe, like the resonated centerpipe for BMW 3 Series platforms, typically fixes drone that a muffler delete introduced, because it restores the cancellation the factory design relied on.

  • Mufflers with stiffer shells also radiate less noise on their own, since raising a muffler shell’s natural frequency can cut shell-radiated noise by several decibels without adding bulk.
  • A resonator swap is the right move when your factory resonator is damaged or missing, not when it’s intact but the drone persists elsewhere.
  • Pipe diameter mismatches and sharp bends near the rear axle can also create standing waves that mimic drone, so check fitment before assuming you need another chamber.

Valve-controlled systems sidestep the cutting and welding entirely. A remote-adjustable valve changes the effective acoustic path on demand, letting you close it down for a quiet commute and open it up for a drive, without removing material permanently.

Pro Tip: Record your rpm test audio before and after any change. A side-by-side comparison at the same rpm is the only reliable way to confirm a fix worked rather than just feeling quieter by memory.

Installation, Tuning, and Safety: Fitment and Emission Cautions

Getting a resonator or side-branch right the first time saves a lot of re-cutting. Work through it in order.

  1. Mock up the fix with clamps before any welding, so you can adjust length or position based on real test drives.
  2. Trial-fit the branch or resonator at the rpm band you identified, then drive the same test loop and rpm sweep from your diagnosis.
  3. If the drone shifts instead of disappearing, adjust the branch length in small increments and retest. Shorter raises the canceled frequency, longer lowers it.
  4. Once the fix performs, convert clamps to a proper weld or band-clamp joint and add a hanger if the added weight puts strain on existing mounts.
  5. Record the final dimensions and rpm result so you have a reference if you modify the exhaust again later.

Backpressure is worth a glance but rarely a real problem with a single added branch or resonator, since the added volume is small relative to the whole system. Watch for a flat spot in acceleration or a check engine light after the change, which can indicate the fix is restricting flow more than intended.

Safety matters more than tone here. Adding side-branches or openings near the midpipe changes how exhaust gas, including carbon monoxide, moves through the system, and standing-wave management components need careful placement and an idle pulsation cover design to avoid CO leakage, particularly at low rpm. Never run a test fit in an enclosed garage, check for exhaust smell inside the cabin after every change, and stop driving immediately if you notice fumes, a headache, or dizziness.

Valve-Controlled and Premium Options for Enthusiasts

A resonator or Helmholtz branch solves one frequency permanently. A valve-controlled exhaust solves the same problem on a schedule you control, because valve placement changes the acoustic path the exhaust pulse travels through, opening or closing sections to change which frequencies reach the cabin.

This is why owners of Audi, BMW, and Porsche-level platforms gravitate toward valves rather than a single fixed resonator:

  • A valve lets the same car stay quiet on a daily commute and open up on a weekend drive, which a fixed resonator can’t do.
  • Luxury and performance platforms often already route exhaust through specific valve placement zones that a tuner can work with rather than against.
  • Because nothing is permanently removed, a valve system avoids the “fix one frequency, lose factory tone” tradeoff that comes with a resonator delete.

Our DIY Helmholtz resonator build guide is a reasonable first step for a budget fix, and it’s also a good way to confirm the exact frequency you’re fighting before deciding whether a full valve system is worth the investment. A resonator weld job and a valve-controlled system sit at different points on the cost and complexity scale: a resonator add-on is a weekend project with hand tools, while a valve system involves electronic components and professional fitment on most platforms.

Pro Tip: If your drone only bothers you at one specific rpm you rarely hold for long, a resonator is probably enough. If you want quiet at idle and aggressive on demand, a valve is the better fit.

When to Hire a Shop: Cost Guide and What to Ask

DIY works well for a simple side-branch or resonator swap if you have a welder, a lift or ramps, and basic exhaust tools. It stops making sense once the job needs cutting into a catalytic converter section, matching a factory flange, or wiring an electronic valve.

Ask any shop you’re considering:

  • How will you confirm the fix worked, by rpm sweep and recorded audio, or just “drive it and see”?
  • Have you installed resonators, side-branches, or valve systems on this specific platform before?
  • What’s the warranty on the weld and the part itself?
  • Will you check for exhaust leaks and CO intrusion after the install, not just before?

Ballpark costs vary widely by shop and region, so treat these as rough ranges rather than quotes: a basic resonator add-on often runs in the low hundreds of dollars in labor, a welded Helmholtz chamber costs somewhat more due to fabrication time, and a full resonated centerpipe or valve-controlled system costs more again due to parts and, for valves, wiring. Get a written estimate before committing.

A shop that won’t test-drive your car at the drone rpm, or waves off your CO safety questions, is a shop to walk away from. Measurement and verification are what separate a real fix from a guess.

Balancing Sound, Performance, and Daily Drivability

Most enthusiasts chasing an exhaust drone fix overcorrect: they either delete everything and live with the rattle, or over-muffle the car and lose the tone they wanted in the first place. A targeted resonator or a valve gives you both, quiet when you need it and character when you don’t.

Whatever route you choose, treat the CO and leak checks as non-negotiable steps, not afterthoughts. A quieter cabin isn’t worth a compromised exhaust path.

— Info

Solve Persistent Drone With a Valve-Controlled Exhaust

When a resonator only gets you partway there, or you want the tone to change with your mood instead of staying fixed, a valve-controlled system is built for exactly that. We supply genuine exhaust parts, down pipes, and accessories direct from authorized manufacturers, fitted for Audi, BMW, Porsche, Ferrari, Lamborghini, and Mercedes-AMG platforms.

Valvecontrolexhaust

  • Browse resonated centerpipes and downpipes built for common drone-prone platforms.
  • Check fitment accessories and controllers for real-time valve adjustment.
  • Reach out through our product pages for guidance matching your exact chassis and engine.

Visit our exhaust parts catalog to see what fits your car before your next drive.

FAQ

What does it mean when an exhaust is droning?

Exhaust drone is a persistent, resonant hum or buzz that shows up at specific rpm ranges, usually while cruising at steady highway speed. It’s caused by a sound wave inside the exhaust or cabin reinforcing itself at one dominant pitch rather than a general increase in loudness.

What causes an exhaust drone?

Drone usually comes from long straight pipe runs without baffling, a missing resonator, or pipe dimensions that create a standing wave at a particular rpm. Tuned resonators and Helmholtz chambers are the standard fix because they target that specific frequency rather than muffling sound broadly.

Does muffler delete cause droning?

Yes, a muffler delete commonly causes or worsens drone because it removes the chamber that was tuned to cancel certain exhaust pulses. Reinstalling a resonated section, such as a resonated centerpipe, typically resolves drone that started after a delete.

What are the symptoms of exhaust drone?

The main symptom is a droning hum that appears in a narrow rpm band and gets noticeably louder in the cabin, trunk, or through the steering wheel. It often fades at idle and at higher cruising speeds, which is why mapping the exact rpm where it occurs is the first diagnostic step.
