Installing an exhaust valve controller comes down to four jobs: mount the control module, power it from a fused source, connect it to the valves (by vacuum line or electrical plug), and test both positions before you close the trunk. Most of the problems people hit later come from two things: heat near the muffler and a poorly placed antenna wire. This guide walks through the whole install, including the prep that decides whether it takes an afternoon or a weekend.
TL;DR
- Identify your valve type first. Vacuum-actuated valves need a solenoid and a vacuum source. Electrically actuated factory valves are usually driven through an adapter or harness.
- Mount the module in the trunk or cabin, power it from a fused circuit, ground it to bare metal, and keep the antenna wire loose and away from large metal panels.
- Shield vacuum hose from exhaust heat and orient the one-way check valve correctly, or a melted line can leave the valve stuck open and loud.
- Test in both modes with the engine off and running, and watch for check engine lights.
- Street-legal cars are covered by federal tampering rules and local noise laws, so read the legal section before you cut or unplug anything.
Table of Contents
- What an exhaust valve controller actually does
- Before you start: check these five things
- Tools and supplies
- Step-by-step: installing a vacuum-based controller
- Installing a controller on factory electric valves
- Test before you put the car back together
- Common mistakes
- Legal checks before you install
- Our perspective
- Finding the right parts
- FAQ
- Sources
What an exhaust valve controller actually does
A valved muffler or cat-back has a flap inside. Closed, it sends exhaust through a restricted path for a quiet, civil note. Open, it sends exhaust through the freer path for more volume and a more aggressive tone. A controller lets you choose the position yourself, usually with a key-fob style remote, instead of leaving it to the factory logic.
On vacuum-based systems, the controller works by inserting a solenoid valve into the vacuum line. When you press the remote, the module energizes the solenoid, which diverts vacuum to the actuator and holds the flap open or closed. The ECS installation instructions for the VW MK5 GTI valved exhaust describe exactly this setup for a vacuum control valve.
On many late-model European performance cars, the valves are electric and already tied into the car’s computer. There the controller does not plumb into vacuum at all. It sits between the factory plug and the valve motor, or reads the car’s data bus, and decides what the valve does. If you want to understand how the stock logic behaves before you override it, read how exhaust valves toggle automatically and, for BMW owners, how BMW exhaust modes work.
Before you start: check these five things
The install itself is not hard. The surprises come from skipping prep.
- Valve type. Look at the valve actuator on your muffler. A small round canister with a vacuum nipple means vacuum. A small motor with an electrical connector means electric. The wiring route and parts list are completely different.
- Vacuum source. Vacuum kits need somewhere to pull vacuum from. The ECS instructions state that you must either already have a boost tap installed or buy one before installing the vacuum control valve. If your engine has no spare port, you would otherwise be tempted to splice into a critical line, which can upset vacuum-dependent parts such as the brake booster. Confirm your car’s available ports before ordering.
- Kit contents. A typical remote controller kit, as listed in the Turner BMW E9x 335i installation guide, includes a solenoid vacuum valve, a check valve, a control module with wiring harness, vacuum hose in two lengths, two remotes and two T-fittings. Count everything before you jack the car up.
- Fit for your exact car. An electric-valve controller built around an OBD2 or CAN bus adapter is model-specific. One electronic valve controller manual lists a factory valve adapter for OBD2 and CAN bus among the contents, which shows how much of the job depends on the right adapter.
- Legal status. Decide now, not after the install. See the legal section below.
Tools and supplies
You do not need a shop, but you do need the right small items:
- Jack stands or a lift (never work under a car on a jack alone)
- Trim removal tools for trunk and panel clips
- Multimeter or test light to confirm a switched or constant power source
- Fuse tap that matches your fuse box (mini, low-profile mini or ATO)
- Crimp connectors or solder, plus heat shrink
- Zip ties and P-clamps for routing
- High-temperature sleeve or heat shield for any hose or wire running near the exhaust
- Extra vacuum hose, if your route is longer than the kit hose
Step-by-step: installing a vacuum-based controller
1. Mount the control module
Most installers put the module in the trunk, behind a side panel, or under a seat. Pick a dry spot you can reach later, away from heat and away from sloshing water. Use the supplied bracket or a hook-and-loop strip, and leave enough slack in the harness to unplug it without removing half the interior.
2. Power and ground
Tap a fused circuit with a fuse tap rather than cutting into factory wiring. Confirm with a multimeter whether the circuit is live with the car off. For a controller that should only work when the car is on, use a switched circuit. Ground to a bare-metal chassis point or a stud, scraping paint if necessary. A weak ground causes more odd behavior than any other wiring fault.
3. Place the antenna wire properly
The thin signal wire on a remote controller is an antenna, not a ground or a power lead. Leave its end unattached and route it away from large metal panels and high-voltage wiring. The Turner instructions linked above are specific about this. Taped flat against sheet metal, it can noticeably cut the remote’s range. If your fob works only when you are standing next to the trunk, check this first.
4. Install the solenoid and check valve
The solenoid goes in the vacuum line between the vacuum source and the valve actuator. Mount it solidly with a bracket or zip tie so it does not rattle. The one-way check valve has a direction. Install it with the arrow or marked side pointing the way the kit specifies, because a backward check valve means the system bleeds vacuum and the valve will not hold position.

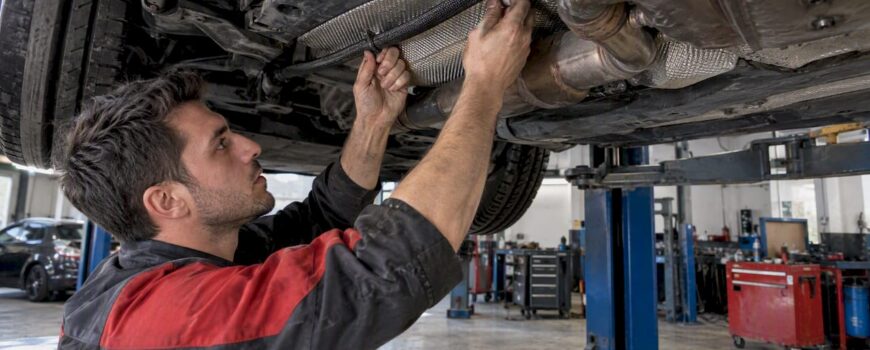

5. Run the vacuum line and protect it from heat
This is the step that separates a long-lasting install from a failing one. Route hose along the underbody, away from the muffler shell, the catalytic converter and the downpipe. Secure it every foot or so. Where it must pass near heat, use high-temperature sleeve or a shield.
The reason is the fail-safe design. If the vacuum line melts or splits, the valve loses the ability to stay closed and defaults to open, which means a permanently loud car. That is also why “universal” vacuum kits usually take more fabrication and thought than their marketing suggests.
6. Connect to the vacuum source
If you have a boost tap or spare vacuum port, connect to it with the supplied T-fitting and hose. Avoid splicing into the brake booster line. Keep the connection short and tight, and check that each hose slides fully onto its barb.
7. Connect the valve actuator
Push the hose firmly onto the actuator nipple. Move the flap by hand, if the design allows it, to confirm it is not seized or binding. Frozen or corroded valves are a common reason a freshly installed controller seems not to work.
Installing a controller on factory electric valves
Cars with electric valves are often easier mechanically, but the details matter more. In the SST-style install that tops the forum results, the owner mounted the controller in the trunk, started with the factory valves in Comfort mode, then unplugged the stock plug at the exhaust and connected the controller’s harness in line with it. The pattern is typical:
- Mount the module in the trunk and run power and ground as above.
- Disconnect the factory valve plug at the exhaust (or the specified connector) and tuck the stock connector away from heat and dirt.
- Plug the controller’s harness between the factory connector and the valve.
- Route the cable along existing wiring paths and secure it away from moving suspension parts and hot components.
- If your kit uses an OBD2 or CAN adapter, plug it in and let the module finish its pairing routine before testing.
Some systems also reach into the car’s data. If yours does, read setting up OBD integration for your exhaust valve system before you plug anything in.
Test before you put the car back together
Do not close up the trunk or lower the car yet.
- Key on, engine off. Press the remote and listen for the solenoid click or valve motor. Watch the flap move if you can see it.
- Engine running, both modes. Toggle open and closed. You should hear a clear difference in volume and tone. Reports in installation guides say the change is immediate when the system is working.
- Check for leaks. With the engine running, listen for hissing near vacuum fittings and look for kinked or collapsed hose.
- Range test. Walk away from the car with the remote and press it from the distance you will realistically use.
- Heat check. After a drive, look at hoses and wires near the exhaust. Nothing should be soft, shiny or discolored.
- Dash check. Confirm there is no check engine light and no warning in the cluster.
If the valve stays shut or won’t move, these five checks for a stuck-closed aftermarket valve will save you time, and the troubleshooting guide for valve exhaust systems covers other common faults.
Common mistakes
| Mistake | What happens | Fix |
|---|---|---|
| Antenna wire grounded or taped flat to metal | Weak remote range | Leave it unattached, route it clear of large panels |
| Hose touching the muffler | Hose melts, valve defaults loud | Re-route, sleeve or shield the hose |
| Check valve backward | Valve won’t hold position | Reinstall in the direction the instructions specify |
| Splicing the brake booster line | Risk to braking assist | Use a proper boost tap or spare port |
| Poor ground | Random resets, dead remote | Ground to bare metal |
| Unplugging a factory valve and leaving it | Fault codes, warning light | Use the correct adapter or harness |
Legal checks before you install
The sound is a feature, but the law treats the exhaust as part of the car’s noise and emissions design. Under the federal Clean Air Act, the EPA’s tampering enforcement policy covers removing, bypassing or defeating elements of design built into a vehicle for emissions control. The same document points to aftermarket devices that interfere with onboard diagnostics as an enforcement priority. A controller that causes a check engine light or an OBD fault is therefore a problem, not a harmless quirk.
The EPA’s fact sheet on aftermarket defeat devices advises having proof that the vehicle will be returned to its stock configuration after installation, or proof that the parts will not increase emissions. In practice, that means choosing a system that leaves emissions equipment intact, and keeping the factory parts and install records.
State and local rules on noise differ. Some set decibel limits, some require a muffler “in good working order,” and some use roadside or inspection checks. Check your state and city rules before you finalize a setup. Our own guides cover this ground: are valved exhausts legal, the sports car exhaust legal checklist, the EPA exhaust tampering checklist and supercar exhaust decibel management. If you are unsure whether a specific modification is compliant where you live, ask your state’s emissions or vehicle inspection agency, or a shop that does inspection work.
Our perspective
We sell valved exhaust hardware for European and luxury performance cars, and the pattern we see is consistent: people judge an exhaust by how loud it is on day one, but they live with it based on how well the valve is controlled on day 400. A system you can quiet down for a neighborhood street or early commute, then open up on a back road, is one you keep driving instead of one you regret.
That is why we think the controller deserves as much care as the muffler. A cheap install with a hose too close to the heat, or a grounded antenna, makes a good exhaust feel unreliable. Our advice to owners is simple: pick parts built for your exact car, follow the manufacturer’s routing, protect everything near heat, and keep the factory parts if you ever need to return the car to stock. We also recommend buying genuine components from authorized manufacturers, because a controller that fits your car’s valves and harness properly is worth far more than one that almost fits.
If you want to understand how valve position changes the character of the drive, our piece on exhaust valves and sound goes deeper.
— Info
Finding the right parts
If you are still choosing hardware, browse our exhaust parts, downpipes and accessories for European and luxury performance cars. Check fitment against your exact model and year before you order, and if you want background on how the pieces relate, start with exhaust system anatomy explained.
FAQ
Do exhaust valve controllers work?
Yes, when the valves are healthy and the install is clean. The controller overrides the factory logic and holds the valve open or closed, and installation guides report an audible difference as soon as the system is active. If you hear no change, the cause is usually a seized valve, a vacuum leak or a wiring fault, not the remote.
How long does an exhaust valve controller install take?
Plan on a few hours for an experienced home mechanic with a plug-in electric-valve kit, and more for a vacuum kit where you route hose underneath. Time is mostly spent on trim removal, routing and testing. We can’t give an exact figure, because it depends on your car and the kit.
Do I need to cut any factory wiring?
Usually not. A good kit connects through the factory plug with a harness or adapter, and power comes from a fuse tap. Avoid cutting factory wiring, since it makes returning the car to stock harder and can trigger fault codes.
Why is my remote range so short?
The most likely cause is the antenna wire. It should stay unattached and run clear of large metal panels and high-voltage wiring. Pressed against bare chassis metal, reception drops sharply.
Is it legal to install an exhaust valve controller on a street car?
It depends on what it changes and where you drive. Federal law prohibits defeating emissions controls, and many states and cities have their own exhaust noise rules. A controller that leaves emissions equipment and diagnostics intact and keeps the car within local noise limits is on safer ground, but check your state’s rules first.
Sources
- ECS Volkswagen MK5 GTI Valved Exhaust System Installation Instructions
- Turner BMW E9x 335i Valved Exhaust System Installation Guide
- Exhaust Valve Controller II instruction manual (PDF)
- EPA Enforcement Policy on Vehicle and Engine Tampering
- EPA Fact Sheet on Aftermarket Defeat Devices and Tampering
